Vascular/Interventional Radiology C-arm tables

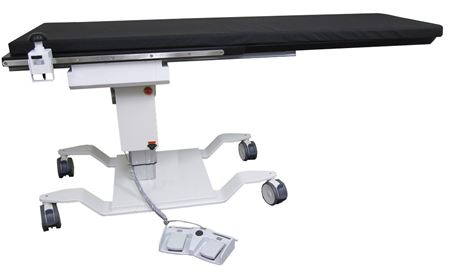

The STILLE Medstone3 CV free-floating C-arm table allows head to toe imaging with complete accuracy, speed and freedom of movements, not limited by the speed of a motor like with joystick operated tables. Ideal for endovascular, ERCP, as well as for veterinary surgical procedures.

Fluoroscopy Surgical table with free-float technology

Medstone3 CV OR table has 3 movements:

• Free Longitudinal floating: 36” (91,5 cm) as well as in any other desired direction, including diagonal float
• Free lateral floating: 8“ (20 cm) and in any other desired direction including diagonal float
• Height adjustment: 26.6”-42.4” (67.6 cm-107.6 cm)

• Tabletop dimensions 61 cm x 208 cm / 24-82”
• Heavy duty steel base frame
• Four hospital grade locking casters
• Float control unit (side rail mounted)
• Mattress pad 5 cm / 2” thick with “Softcare™” technology
• One (1) hand control
• One (1) foot control
• One (1) catheter tray 61 cm / 24” (North America only)
• Three (3) Patient safety straps
• 230Vac, 2A, 50/60Hz and 120Vac, 3,6A, 50/60Hz with 230Vac or 120Vac style line cord

• Longitudinal float 91.5 cm / 36”
• Lateral float 20 cm / ±4”
• Imaging length 162.5 cm / 64” head to toe
• 3D imaging length 82 cm / 32”
• Motorized elevation 61.5 cm – 91.5 cm / 26-42”
• Patient weight capacity 227 kg / 500lbs
• Parts and labor warranty 3/2 year
