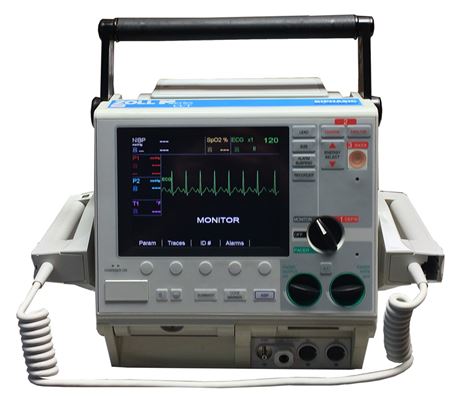

Zoll CCT M Series Bi-Phasic Defibrillator (Demo)

Product Number: ZOMCCTBPSNI

As the newest member of the Zoll family, the Zoll CCT M Series Defibrillator contains straightforward controls and uniform operating system to ensure reduced staff training and minimization of operator confusion. The Zoll XL battery inside the CCT defibrillator delivers longer transport times required for portable operation. Bringing together superior biphasic defibrillation, external pacing, complete monitoring, a multiple application printer, and large full-color display, the M Series CCT defibrillator is the perfect compact machine for every facility.

Size: 6.8”(17.3 cm) H x 10.3”(26.2 cm) W x 8.2”(20.8 cm) D
Weight: 11.5 lbs (5.23 kg) with Multi-Function Cable and battery; 13.5 lbs (6.14 kg) with paddles
Design Standards: Meets or Exceeds UL Standards

ECG Monitoring

Patient Connection: 3, 5 or 12 -lead ECG cable, paddles or MFE Pads.
Bandwidth: 0.5-40 Hz (-3 dB) or 0.5-30 Hz; 0.05-150Hz diagnostic
ECG Size: 0.5, 1, 1.5, 2, 3 cm/ mV – display on monitor
Heart Rate: Digital display 0-3000 bpm ± 5%


Screen Type: Color LCD
Screen Size: 6.5"(16.5cm) diagonally
Sweep Speed: 25mm/ sec
Viewing Time: 4 seconds
Channels: 3


Waveform: Zoll Rectilinear Biphasic
Energy Selection: Selectable 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 75, 100, 150, 200, 300, 360 joules. (Delivered into 50 Ω load.)
Charge Time: Less than 6 seconds with new fully charged battery
Paddles: External anterior/ anterior adult and pediatric
