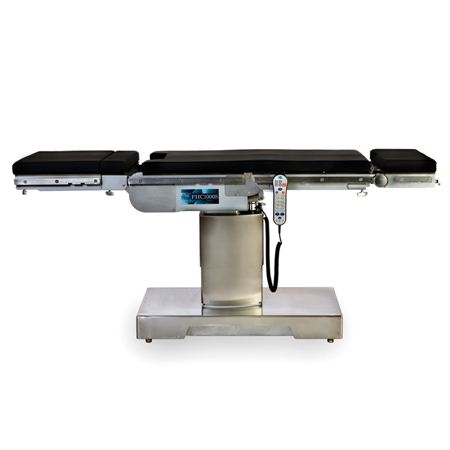

FHC1000 Radiographic Top O.R. Table

Product Number: FHC1000

As the highest quality operating table on the market, this OR/Surgical table is designed to provide the most premium features of any other surgical table at a fraction of the cost. The FHC1000 series surgical table offers an innovative, compact design while maintaining enough clinical versatility to accommodate surgical procedures in nearly all fields, including urology, neurology, orthopedics, and cardiology. In addition to the durable, rust-free components, the FHC1000 O.R. table incorporates several fail-safe functions to ensure its continuous operation. With an assortment of position capabilities, this operating table is designed to simply patient positioning and features a notably sturdy, low-profile base to provide surgeon comfort to reduce fatigue during long procedures.



  • Adjustable head section
  • 2” table pad incorporates a layer of pressure relief, Viscoelastic foam (memory foam)
  • Perineal cut-out
  • Stainless steel standardized side rail
  • Radiographic top for C-arm access with 12.2”slide and removable leg section
  • Narrow stainless steel rectangle base w/ side access for surgical personnel
  • Stainless steel four stage lift column to 48” high without pad
  • Weight capacity 1000 lbs.
  • Back lit hand control with reverse patient function
  • Swivel casters
  • Manually operated adjustable Kidney elevator up to 4.7” high



  • Height of table w/o mattress: 26”- 48” (66cm-122cm)
  • Kidney: 4.7”(12cm)
  • Trendelenburg: 0-30°
  • Reverse trendelenburg: 0-30°
  • Lateral Tilt: 0-20° to right, 0-20° to left
  • Back Section: 0-80° up, 0-50° down
  • Leg Section: 0-80° up, 0-105° down
  • Head Section: 0-90° up, 0-90° down
  • Flex: back down 25° max, seat down 25° max
  • Reflex: back down 30° max, seat down 30° max
  • Override Switches: height, sliding, trendelenburg, reverse trendelenburg, slide tilt, back, leg, floor locks
  • Level: return to level +/- 2°

Click here to see a comparison of the FHC1000 to other popular tables such as the Steris 3085 SP, Maquet 1132 (Alphstar), Berchtold Operon B810, Berchtold Operon B710, and the Berchtold Operon D750
