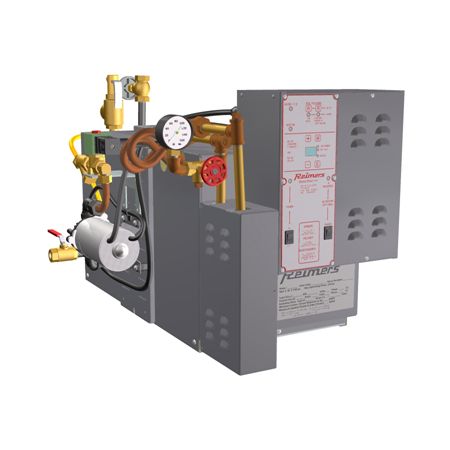

Reimers Steam Boiler 20KW Generator

Product Number: RERH-20

Reimers Steam Boiler Model RH 20KW with high pressure feed water pumping system  assembled and wired to boiler
  • Solenoid water feed
  • Equipped with adjustable pressure control and manual reset hi-limit control
  • Heavy duty magnetic contactors
  • Combination low water cut-off and water controller
  • 150# forged steel flange mounted steam outlet valve
  • Water gauge glass with protector
  • Off-on switch with pilot light
  • Shell is of ASME construction wrapped in 2" fiberglass insulation & encased with 20ga S/S jacket
  • Voltage available:  208,240,346,380,415,480,600:  3 phase 50/60 hertz.
