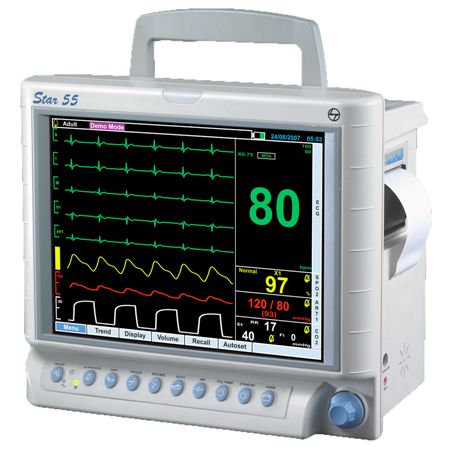

Skanray / L&T Star 55 Patient Monitor (RETIRING)

Product Number: LAF386390061027

*Three year parts & labor warranty


Type: High resolution color TFT display.

Resolution: 800 X 600 pixels.

Size: 12.1" configurable screen for max of eight waveforms.

Trace Speed: 12.5, 20 OR 50 MM/SEC for ECG, SpO2 & IBP 6.25, 12.5 OR 25 MM/SEC for respiration & CO2.

Optical Encoder Keys

Optical Encoder: Rapid access to all the functions and setting through single knob.

Hot Keys: Quick action hot keys for acknowledge, NIBP start/stop, record start/stop, IBP zero, freeze, stand by, go-to, CO2 pump off and home key.

3/5 Lead ECG Monitoring

Automatic detection of 3 or 5 lead ecg cable. Display of I, II, III with 3 - lead cable and I, II, III AVR, AVL, AVF andV leads with 5 lead cable. Built-in cautery and defibrillator protection. Optional st and arrhythmia analysis.

HR Range: 20 to 350 BPM


Principle: Impedance pneumography. Display of respiration waveform with respiration rate.

RR Range: 4 to 150 BPM

Simultaneous monitoring of two temperatures. Display of T1 ANand T2 or ΔT (if difference between T1 & T2 is less than 9.9°C)

Probe: Compatible with YSI 400 series temp. probe(optional)

Temp. Range: 0°C to43°C

Pulse Oximetry (Nellcor module)

Pitch Variation: With change in oxygen saturation SpO2 range: 0-100%

Display: Plethysmograph, pulse strength & SpO2 values.

Accuracy: Adult- 100 TO 70% (+/- 2 digits), 0 to 69% (unspecified) (+/- STD. DEV.)

Neonate: 100 TO 70% (+/- 3 digits), 0 TO 69% (unspecified)

PR Range: 20 TO 230 BPM +/- 3 BPM (+/- STD. DEV.)

Invasive Blood pressure

Simultaneous monitoring of max. 4 channels. Display of systolic, diastolic and mean pressure. Individual and common channel zeroing. Labeling facility with automatic limits/gain/color setting. Pressure channel overlapping option available.

Range: -40 to 300 MMHG

IBP Scale: 5, 10, 15, 20, 30, 60, 80, 100, 120, 150, 180, 200, 240, 300 & auto

Non-Invasive Blood Pressure (Suntech Module)

Principle: Oscillometric

Display: Systolic, diastolic & mean pressure

Modes: Manual, stat (5 MIN), auto. (2 MIN TO 90 MIN)

Range: 20 TO 250 MMHG

Accuracy: +/- 3 MMHG

Capnography (Oridion Module)

Microstream capnography with display of CO2 waveform and digital values of EtCO2, FiCO2, & RR, CO2 ets priority for calculating resp. rate

EtCO2 Range: 0 - 99 MMHG

FiCO2 Range: 0 - 20 MMHG

Gain: 20, 40, 60, 80 MMHG

Flow Rate: 50 ML/MIN (-7.51 / + 15ML/MIN)

Warm-Up Time: 40 SECS (typically)

Units: MMHG, KPA / VOL%, RR

Range: 0 -150 BPM

Alarm settings for all parameters

Patient Alarm: Red flashing with audio and message indicator alarm tuo-set facility provided

Equipment Alarm: Yellow flashing with audio and message indicator

Alarm Suspend: Continuous yellow

Re-Alarm Facility: 3 min. for acknowledge alarm


72 HRS/100 Patients graphical and tabular trend withh zoom facility

NIBP Trend: 240 Reading tabular

Alarm Recall: Last 24 alarm events with date, time & message

Recorder (optional)

Type: Built-in channel thermal recorder for recording two waveforms (selectable) with numerical data and alarm status. nibp and tabular trend recording with patient information

Modes: Direct/delayed/continous ans record on alarm facility(selectable)

Dimension: (H X W X D) 208 X 320 X 158 MM

Weight: 6KG (with built-in battery & thermal array recorder)

Power Supply

Universal Power: 95 - 265V AC, 50/60 Hz

Current Rating: 0.7 A (Max)

Battery Type: 14.8V (4 AH/8 AH) Lithium Ion Batteries

Operating Time: Built-in rechargeable battery for 2/4 hrs of continuous operation under full charge condition (typically)

Charging Time: 8 HRS (typically)

   As an upgradable, user-friendly monitor, L&T's Star 55 Patient Monitor offers wide flexibility of configurations and screen formats. The Star 55 can be used for adults, pediatric, & neonates to provide convenient usage in various departments for many applications. With a lightweight design and reliable performance, the L&T Star 55 can be used in virtually every location. Its built-in Li-ion battery ensure long-lasting battery life, making transporting or ambulatory monitoring worry-free.
