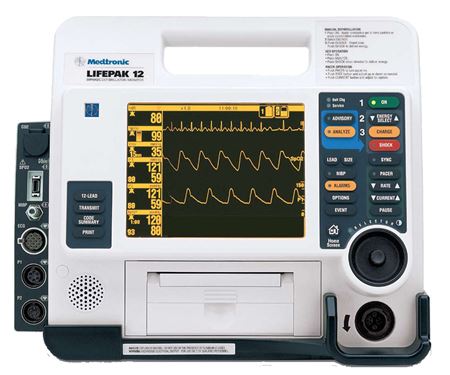

Medtronics (Physio Control) Lifepak 12 Biphasic Defibrillator

Product Number: FHC-LIFEPAK12-B

The Medtronic Physio Control Lifepak 12 Biphasic Defibrillator comes equipped with industry-standard monitoring tools for both adult and pediatric patients. As one of the only defibrillators on the market today with an ST Monitoring feature, the Lifepak 12 takes a series of ECGs at frequent intervals and alerts you to changes in patient's ST measurement. The large screen of the defibrillator shows graphic displays of vital signs, allowing for evaluation of changes in patient condition and patient response to therapy over time. Tracking patient status breath by breath with patented Microstream capnography technology, the Physio Control Lifepak 12 is a dependable, portable device you can trust.

Size: 12.5"H x 15.6"W x 9.1"D
Weight: 14.8 lbs w/ Unit and QUIK-COMBO cable


Size (active viewing area):
LCD: 5.5"W x 4.2"H
EL: 6.5" X 4.9"h
Resolution: 640 x 480 black & white LCD, 640 x 480 amber/black EL display
Waveform Display Sweep Speed: 25mm/sec for ECG/12.5mm/sec of CO2


Waveform: Biphasic truncated exponential w/ voltage and duration compensation for patient impedance
Energy Select (Biphasic): 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, and 360 joules or user configurable sequence 100
Energy Accuracy: +/- 1 joule or 10% of setting, whichever is greater, into 50 ohms,
+/- joule or +/- 5%, whichever is greater, of 50 ohm value into 25 to 200 ohms*
*Note: +/- 5% accuracy applies when disposable therapy electrodes attached
Charge Time: Less than 10 seconds, typical
Paddles: QUIK-COMBO pacing/defibrillation/ECG electrodes (standard)
Cable Length: 8ft long QUIK-COMBO cable (not including electrode assembly)
