Electro-Steam V-Block Steam Generators

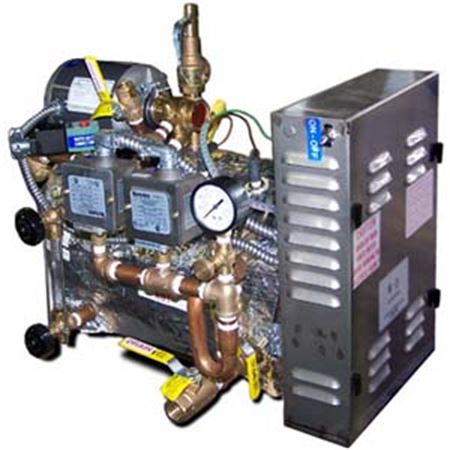

Electro-steam 10kw- 30kw Electric Steam Generator 100% Dry Steam

Standard features: dual low water cutoff with dual pressure controls, water inlet manifold for high and low pressure, inlet solenoid (electric), high pressure-automatic water feed assembly-including pump, motor and all controls mounted and wired as a single package, 120/208-240v or 120/440-480v, brass, copper and bronze external plumbing, heating elements-stainless steel sheath (incoloy 800), solid state controls, schedule 40 carbon steel chamber and chamber wrapped in 2" aluminum-backed fiberglass insulation. 1 year parts warranty. Shipping wt. 175lbs.

PRODUCT NUMBERS ARE:

LG10V-BLOCK
LG15V-BLOCK
LG20V-BLOCK
LG25V-BLOCK
LG30V-BLOCK

Model Number

LG-10 LG-15 LG-20 LG-25 LG-30
Electric Rating KW 10 15 20 25 30
Developed Boiler Horse Power BHP 1.0 1.5 2.0 2.5 3.0
Steam Capacity (at 212F) LBS. LB/HR 34.5 51.7 69 86 103.5
Gross BTU Output BTU/HR 33,500 50,200 67,000 83,750 100,400
Dimensions
Height, Overall Inches 23 23 23 23 23
Length, Overall Inches 26 26 26 26 26
Width, Overall Inches 19 19 19 19 19
Steam Outlet (High) Inches 1/2 1/2 1/2 1/2 1/2
Steam Outlet (Low) Inches 1/2 1/2 1/2 1/2 1/2
Amperage
208V. - 3 Phase AMPS 28 42 56 70 84
480V. - 3 Phase AMPS 13 19 25 31 37
Shp. Wgt. Low Pressure AMPS 175 175 175 175 175
Shp. Wgt. High Pressure LBS. 200 200 200 200 200
