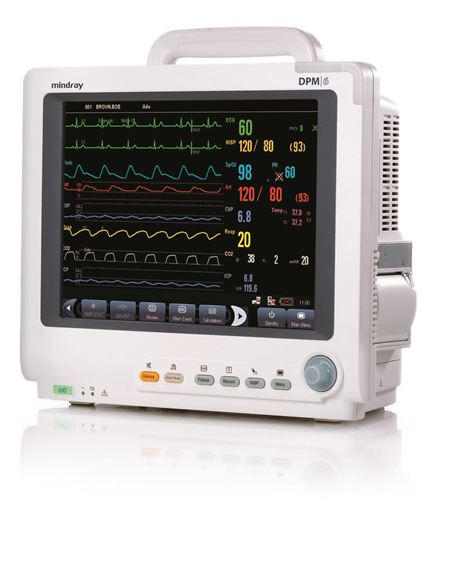

Mindray DPM 6 Patient Monitor

Product Number: MI-DPM6

The DPM 6 offers a broad range of patient monitoring features well-suited for the mid to high acuity patient care environments. Incorporating the features that make monitoring easier – a 12.1" touchscreen display with optimal display visibility, quick-access menus, easy touch function keys, and multiple trend capabilities – the DPM 6 was made with the clinical user in mind. For use in the critical care environment, the DPM 6 offers a wide range of parameters and features well suited for these acuity levels such as multi-lead arrhythmia and ST analysis, cardiac output (CO), continuous cardiac output (CCO/SVO2) and up to 8 invasive blood pressures. For the OR, the DPM 6 offers an optional multi-gas module, BIS technology, and MAC measurements for a complete anesthesia monitor package. Delivering enhanced capability, modular scalability, at an extraordinary value – the DPM 6 fits your diverse monitoring needs.
Key Features
  • 12.1" high resolution touchscreen display
  • Robust measurement set for mid to high acuity environments
  • Enhanced data storage and recall capabilities
  • 3, 5, and 12-lead ECG
  • Arrhythmia and ST analysis
  • Up to 8 invasive blood pressures
  • CCO/SVO2 capability when interfacing with Vigilance II®
  • Cardiac output, pulmonary artery wedge pressure, and hemodynamic calculations provide the tools for cardiac monitoring
  • SpO2: Masimo SET® (standard) or Nellcor® OxiMax®
  • CO2: DPM Sidestream or Oridion® Microstream®
  • Optional BIS™ technology
  • Available multi-gas module
  • Defibrillator synchronization
  • Wireless 2.4Ghz (802.11g)
 Extended data storage and recall capabilities
  • 120 hours of graph and list trends
  • 48 hours of full disclosure waveform review
  • NIBP recall for 1,000 most recent measurements
  • Alarm event review for up to 100 physiological alarm episodes
  • Alarm event review for up to 100 arrhythmia alarm episodes
