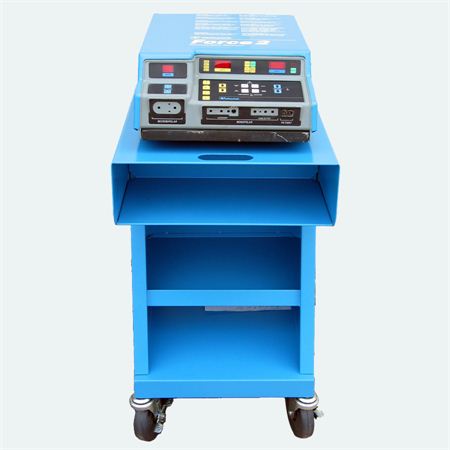

Weight and Dimensions
Height: 8" (20 CM)
Width: 13" (33 CM)
Length: 21" (53 CM)
Weight: 23 lbs (10.4 KG)
Output Wave Forms
Blend 1: 510 KHZ sinusoisal bursts at 50% duty cycle recurring at 31 KHZ
Blend 2: 510 KHZ sinusoisal bursts at 37.5% duty cycle recurring at 31 KHZ
Blend 3: 510 KHZ sinusoisal bursts at 25% duty cycle recurring at 31 KHZ
COAG: 510 damped sinusoisal bursts with a repetition frequency of 31 KHZ
Low Voltage COAG: 510 KHZ sinusoisal bursts at 25% duty cycle recurring at 31 KHZ
Bipolar: 510 KHZ sinusoid less than 5% or 5 watts, whichever is greater, as the line voltage varies from 85-135 volts(into a 300 OHM load).
Low Frequency Leakage (50-60 HZ)
Source current, patient leads, all outputs tied together.
Normal polarity, intact chassis ground <10 µA
Normal polarity, ground open<100 µA
Reverse polarity, ground open <100 µA
Sink current, 140v, applied, all inputs <150 µA
High Frequency Leakage
Less than 150 MA RMs
Input Power Requirements
Operating range is 85 to 135 AC volts. Current is less than 8
amperes in cut and less than 4 amperes in COAGS.
Power Readouts
Agree with actual power into rated load within ± 15% or 5 watts, whichever is greater.
Adaptive REM™ System
Measurement Frequency: 140 KHZ ± 20 KHZ
Measurement Current: 3 MA max
Acceptable Resistance Ranges:
REM™ Pad - 5-135 OHMS
Non-REM™ Pad - less than OHMS
Acceptance range is 5-135 OHMS after Rem™ Polyhesive™ II
return electrode is applies. Rem™ trip is initial impedance plus
40%. For example, if the initial impedance is 30 OHMS, the upper
level trip is approximately 42 OHMS.
Cooling
Convection, no fan
Audio Volume
The mode indicator tones are adjustable to a minimum level of 45
db at 1 meter. The alarm tones are not adjustable and are set at
65 DB minimum at 1 meter
Also available is 220-240-volt, 50-60 hz configurations
|
MODE
|
MAXIMUM P-P VOLTAGE
|
RATED LOAD (OHMS)
|
MAXIMUM POWER (WATTS)
|
CREST FACTOR* (TYPICAL)
|
|
PURE CUT
|
3000
|
300
|
300
|
1.9
|
|
BLEND 1
|
3500
|
300
|
250
|
3.3
|
|
BLEND 2
|
3700
|
300
|
200
|
4.0
|
|
BLEND 3
|
4000
|
300
|
150
|
4.8
|
|
COAG
|
7000
|
300
|
120
|
9.0
|
|
LOW VOLTAGE COAG
|
4000
|
300
|
99
|
4.8
|
|
BIPOLAR
|
800
|
100
|
70
|
2.0
|
