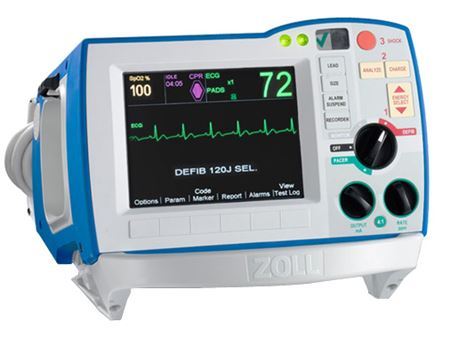

Zoll R Series Defibrillator / Monitor

As the first and only Code-Ready defibrillator, the Zoll R-series defibrillator/monitor simplies every aspect of being read for a code efficiently and cost effectively. It automatically monitors and tests the complete system and can notify and alert users about problems before they affect your ability to provide care. The simple, ingenious OneStep simplicity of the Zoll R series defibrillator delivers therapy to patients in the easiest method ever designed. With a large, bright screen and oversized characters, the Zoll R defibrillator/monitor can be seen from anywhere in the room.
Size: 8.2" H x 10.5" W x 12.5" D
Weight: 13.6 lbs w/ OneStep Cable and SurePower battery pack
Design Standards: Meets or exceeds UL standards

ECG Monitoring

Patient Connection: 3 or 5-lead ECG cable, paddles or hands-free resuscitation electrodes
Bandwidth: 0.5-25 Hz (-3 dB); 0.05 to 150 Hz diagnostic w/ options 0.5-40 Hz or 1-21 Hz
ECG Size: 0.5, 1, 1.5, 2, 3 cm/ mV – display on monitor
Heart Rate: Digital display 0-300 bpm ± 5%


Screen Type: Color, VGA LCD
Screen Size: 6.5" diagonally
Sweep Speed: 25mm/ sec
Viewing Time: 5 seconds w/ standard display format
Channels: 3


Waveform: Zoll Rectilinear Biphasic
Energy Selection: Selectable 1 to 10, 15, 20, 30, 50, 75, 100, 120, 150, 200 joules.
Charge Time: Less than 7 seconds with new fully charged battery
Paddles: Standard apex/sternum adult and pediatric

  • Simple, smart, and Code-Ready
  • CPR Dashboard featuring Real CPR Help
  • See-Thru CPR reduces duration of pauses during CPR
  • 100 individual indicator checks
  • Unique, constant-current 40-msec pacing
  • High-current Rectilinear Biphasic waveform
