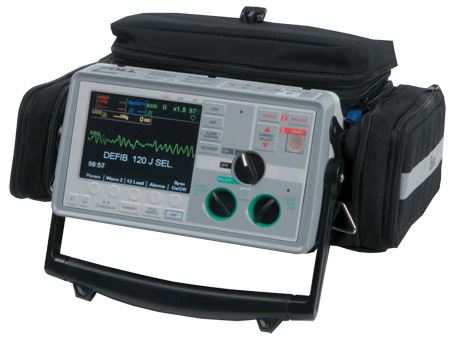

Zoll E Series Defibrillator / Monitor


Zoll has designed a radically new defibrillator, with you, and your fast-moving world, in mind. With an easy-to-read Tri-Mode Display, the E Series defibrillator/monitor adjusts on the fly from color to black and white or white on black, assuring that you will never miss critical patient-assessment information. The GPS clock synchronized time across your entire system automatically when the defibrillator is turn on and within line of site with a satellite. The small, compact, and lightweight briefcase-style design makes moving the machine around easy as can be so that saving lives is your only worry.
Size: 5.75" H x 13.1" W x 10.5" D
Weight: 13.5 lbs without roll cage or battery
Design Standards: Meets or Exceeds UL Standards

ECG Monitoring

Patient Connection: 3, 5 or 12 -lead ECG cable, paddles or MFE Pads.
Bandwidth: 0.5-1 Hz (-3 dB) or 0.5-150 Hz; 0.05-150Hz diagnostic
ECG Size: 0.5, 1, 1.5, 2, 3 cm/ mV – display on monitor
Heart Rate: Digital display 0-300 bpm ± 5%


Screen Type: High-resolution color LCD display
Screen Size: 5.63" diagonally
Sweep Speed: 25mm/ sec
Viewing Time: 4 seconds
Channels: 2


Waveform: Zoll Rectilinear Biphasic
Energy Selection: Selectable 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 joules. (Delivered into 50 Ω load.)
Charge Time: Less than 6 seconds with new fully charged battery
Paddles: Standard apex/sternum adult and pediatric
