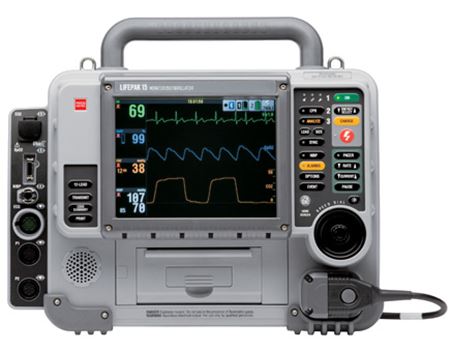

Medtronics (Physio Control) Lifepak 15 Defibrillator / Monitor

Product Number: FHC-LIFEPAK15
Quantity:

Description:

As the most advanced emergency response monitor/defibrillator today, the Physio Control / Medtronics Lifepak 15 device balances sophisticated clinical technologies and supreme ease of use into one compact machine. The Lifepak 15's ruggedness and durability can withstand even the toughest environments. With new features like temperature monitoring and external power, the Lifepak 15 provides innovative solutions for emergency response care, from first responders to throughout the hospital.

Specs:


Size: 12.5"H x 15.8"W x 9.1"D
Weight: 20.1 lbs fully featured

Display

Size (active viewing area):
LCD: 6.7"W x 5.0"H
Resolution: 640 x 480 dot color backlit LCD
Waveform Display Sweep Speed: 25mm/sec for ECG, Sp02, IP, and 12.5 mm/sec for C02

Defibrillator

Waveform: Biphasic truncated exponential
Energy Select (Biphasic): 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, and 360 joules or user configurable sequence 100
Energy Accuracy: +/- 1 joule or 10% of setting, whichever is greater, into 50 ohms,
+/- 2 joule or 15%, whichever is greater, into any impendance from 25-175 ohms
Charge Time: ready to shock to 360 joules in less than 10 seconds, typical
Paddles: QUIK-COMBO pacing/defibrillation/ECG electrodes (standard)
Cable Length: 8ft long QUIK-COMBO cable (not including electrode assembly)

Overview:
  • 8.4" dual-mode LCD display (full-color to high-contrast)
  • 3-lead ECG monitoring
  • On-screen temperature monitoring
  • external power and internal power options
  • CPR guidance and post event review
  • Larger handle for easier handoffs
  • Improved ruggedness and durability
  • Easy one-touch Bluetooth data transmission
