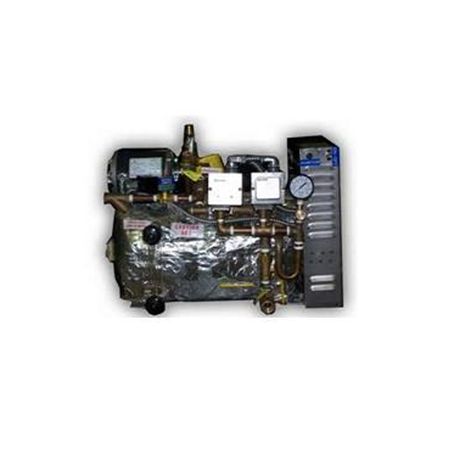

Electro-Steam V-Block Generators
|
Show larger view
|
Electro-steam 10kw- 30kw Electric Steam Generator 100% Dry Steam
Standard features: dual low water cutoff with dual pressure controls, water inlet manifold for high and low pressure, inlet solenoid (electric), high pressure-automatic water feed assembly-including pump, motor and all controls mounted and wired as a single package, 120/208-240v or 120/440-480v, brass, copper and bronze external plumbing, heating elements-stainless steel sheath (incoloy 800), solid state controls, schedule 40 carbon steel chamber and chamber wrapped in 2" aluminum-backed fiberglass insulation. 1 year parts warranty. Shipping wt. 175lbs.
PRODUCT NUMBERS ARE:
LG10V-BLOCK
LG15V-BLOCK
LG20V-BLOCK
LG25V-BLOCK
LG30V-BLOCK
|
Model Number |
|
LG-10 |
LG-15 |
LG-20 |
LG-25 |
LG-30 |
| Electric Rating |
KW |
10 |
15 |
20 |
25 |
30 |
| Developed Boiler Horse Power |
BHP |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
| Steam Capacity (at 212F) LBS. |
LB/HR |
34.5 |
51.7 |
69 |
86 |
103.5 |
| Gross BTU Output |
BTU/HR |
33,500 |
50,200 |
67,000 |
83,750 |
100,400 |
| Dimensions |
|
|
|
|
|
|
| Height, Overall |
Inches |
23 |
23 |
23 |
23 |
23 |
| Length, Overall |
Inches |
26 |
26 |
26 |
26 |
26 |
| Width, Overall |
Inches |
19 |
19 |
19 |
19 |
19 |
| Steam Outlet (High) |
Inches |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
| Steam Outlet (Low) |
Inches |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
| Amperage |
|
|
|
|
|
|
| 208V. - 3 Phase |
AMPS |
28 |
42 |
56 |
70 |
84 |
| 480V. - 3 Phase |
AMPS |
13 |
19 |
25 |
31 |
37 |
| Shp. Wgt. Low Pressure |
AMPS |
175 |
175 |
175 |
175 |
175 |
| Shp. Wgt. High Pressure |
LBS. |
200 |
200 |
200 |
200 |
200 |
|
|
