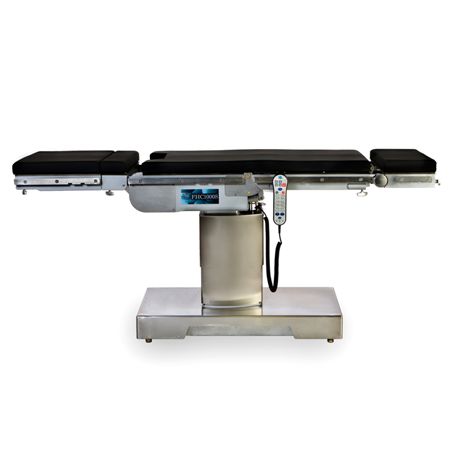

FHC Radographic O.R. Table

Product Number:	FHC1000
Quantity:

Adjustable head section

2” Table pad incorporates a layer of pressure relief, Viscoelastic foam(a.k.a memory foam

Perineal cut -out

Stainless steel standardized side rail

Radiographic Top for C-arm access with 12.2” slide with removable leg section

Narrow stainless steel rectangle base with side access for surgical personnel

Stainless steel four stage lift column to 48” high without pad 1,000 lb capacity

Back lit hand control with reverse patient function

Swivel casters

Manually operated adjustable Kidney elevator up to 4.7” high

Height of table wihout mattress: 26”-48”(66cm-122cm)

Kidney: 4.7”(12cm)

Trendelenburg: 0- 30 degrees

Reverse Trendelenburg: 0-30 degrees

Lateral Tilt:To right 0-20 degrees, to left 0-20 degrees

Back Section: Up 0- 80 degrees, down 0-50 degrees

Leg Section:Up 0-80 degrees, down 0-105 degrees

Head Section:Up 0-90 degrees ,down 0-90 degrees

Flex:Back down 25 degree max, seat down 25 degrees max

Reflex:Back down 30 degree max, seat down 30 degree max

Override Switches:Height, Sliding,Trendelenburg,Reverse Trendlenburg,Side Tilt,Back,Leg,Floor Locks

Level:Return to level +/-2 degrees
