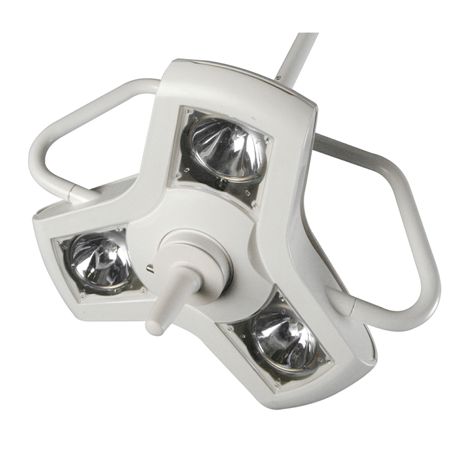

FHC AIM-100
|
Show larger view
|
Illuminance: 14,800 Footcandles (160.000 Lux) at 24" and 5800 Footcandles (63,000 Lux) at 1 meter
Color temperature: 3700ºK
Diameter of lighthead: 20 Inches (51 cm)
Light field diameter: 9.6" - 12" (25 cm - 31 cm)
Depth of Illumination: 47" (1.2 m)
Focusing: Adjustable by rotating center handle
CRI (Color Rendering Index): 97
Rotation: 360º (limitless) on single ceiling models
Sterilizable handle: Locks into position with one hand
Number of bulbs: 3
Light sources (halogen): 35 W IRC, 12 volt, hi-pin
Rated life of halogen lamp: 2,000
Swivel radius of lamp housing-ceiling mounted: 71" max. **
Height movement of lamp housing-ceiling mounted: 41" vertical movement
Minimum ceiling height/maximum ceiling height: 7 ft / 12 ft
Power: 116 Watts
Electrical system standards: UL 60601
Mounting options: Single ceiling, double ceiling, floor, and wall
Total weight: 35 lbs. (floor version), 34 lbs. (single ceiling version)
Seismic calculations available: Yes
Bulb change mechanism: Changes from top with Phillips head screw driver
Product warranty: One year labor and three year parts
Applications: Emergency Room, Trauma Center, Cath Lab, Outpatient Surgery, Ophthalmology and Clinics
Accessories: AIM-100 replacement bulbs, sterilizable handles, and disposable handle covers are available for purchase
Note: The optical data are nominal values based on measurements calculated according to UL/IEC performance standards at 120V
** With extension arm and spring are extended
|
|
