Which Endoscopy Monitor is Right For Your Facility?

Which Endoscopy Monitor is Right For Your Facility?

Sunday, September 2, 2018


Endoscopy monitors and recording equipment are essential for several types of facilities and doctors – so how do you choose the right types for your needs?

There are a few questions you may begin by asking, including:

  • How many connections does it have?

  • What type of connections does it include?

  • How large is the screen size?

  • Is the picture in HD?

  • Is the monitor bright enough?

These questions become even more difficult to sift through when your facility has a tight budget. Thankfully, Future Health Concepts has many affordable, quality options to choose from that will not only meet your functionality needs, but also your budget.

In this article, we are providing you with a basic overview of a few medical displays to try and help you make that decision. With endoscopy monitors ranging from 19” all the way up to 55” there is a size for every facility.

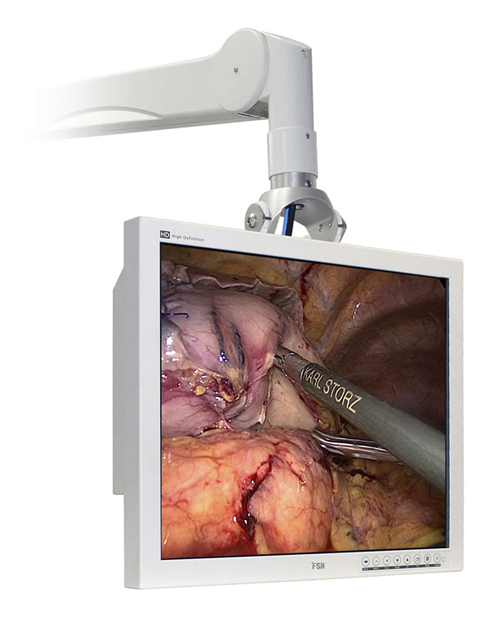

1.       19” Medical Display (FS-Y1901D)

·         Display: 19” TFT LCD (LED)

·         Resolution: 1280 x 1024 pixel

·         Surface Luminance: 500 cd/m^2

·         Input Signal: 1 x DVI-D, 1 x VGA, 1 x S-VIDEO, 1 x SDI(SD/HD/3G), 1 x C-VIDEO, 1 x Component (RGBS,YPbPr)

·         Output Signal: 1 x DVI-D, 1 x SDI(SD/HD/3G)

·         Dimensions: 16.65”W x 13.84”H x 3.01”D

·         Weight: 12.79 lbs.






2.       24” Medical Display (FS-L2402D)

·         Display: 24” TFT LCD (LED)

·         Resolution: 1920 x 1200 pixel (WUXGA)

·         Surface Luminance: 600 cd/m^2

·         Input Signal: 2 x DVI-D, 2 x SOG, 1 x C-VIDEO (BNC), 1 Component (RGBS, YPbPr) (5 x BNC), 1 x SD/HD/3G-SDI (BNC) (2 x SDI optional), 1 x VGA (D-sub), 1 x S-Video (DIN)

·         Output Signal: 2 x DVI-D, 2 x SOG, 1 x S-VIDEO (DIN), 1 x Component (RGBS, YPbPr) (5 x BNC, 1 x SD/HD/3G-SDI (BNC) (2 x SDI optional), 1 x C-VIDEO (BNC)

·         Dimensions: 22.84”W x 15.20”H x 2.76”D

·         Weight: 16.53 lbs.

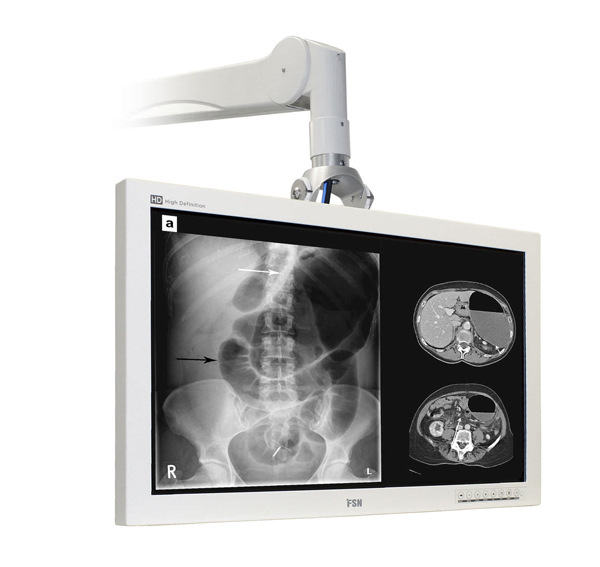

 3.       26” Medical Display (FS-P2601D)

·         Display: 26” TFT LCD (LED)

·         Resolution: 1920 x 1080 pixel (HD 1080)

·         Surface Luminance: 450 cd/m^2

·         Input Signal: 1 x DVI-D 1, 1 x VGA (D-sub), 1 x C-Video (BNC), 1 x Component (RGBS, YPbPr) (5 x BNC), 1 x DVI-D 2 (optical fiber optional), 1 SD/HD/3G-SDI (BNC), 2 x S-Video (Y/C) (BNC)

·         Output Signal: 1 x DVI-D, 1 x SD/HD/3G-SDI (BNC)

·         Dimensions: 25.12”W x 15.32”H x 2.94”D

·         Weight: 16.8 lbs.


           *FS-P2602D – same as above except, w/ surface luminance of 500 cd/m^2

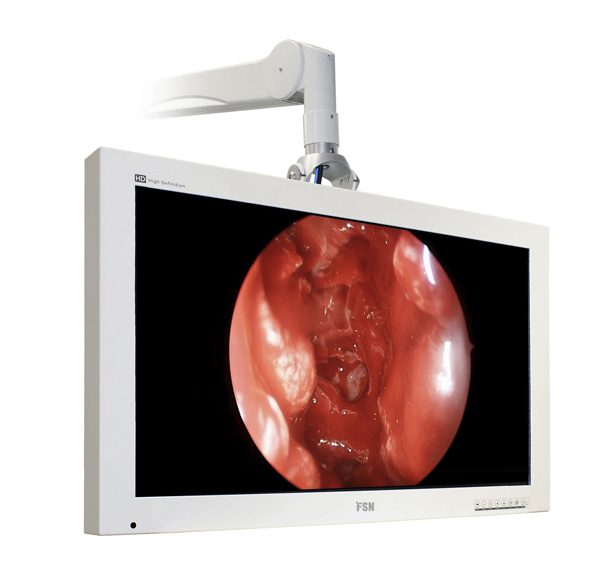

4.       32” Medical Display (FS-L3202D)

·         Display: 32” TFT LCD (LED)

·         Resolution: 1920 x 1080 pixel

·         Surface Luminance: 450 cd/m^2

·         Input Signal: 2 x DVI-D, 2 x SOG, 1 x C-VIDEO (BNC), 1 Component (RGBS, YPbPr) (5 x BNC), 1 x SD/HD/3G-SDI (BNC) (2 x SDI optional), 1 x VGA (D-sub), 1 x S-Video (DIN)

·         Output Signal: 2 x DVI-D, 2 x SOG, 1 x S-VIDEO (DIN), 1 x Component (RGBS, YPbPr) (5 x BNC, 1 x SD/HD/3G-SDI (BNC), 1 x C-VIDEO (BNC)

·         Dimensions: 16.65”W x 13.84”H x 3.01”D

·         Weight: 28.2 lbs.

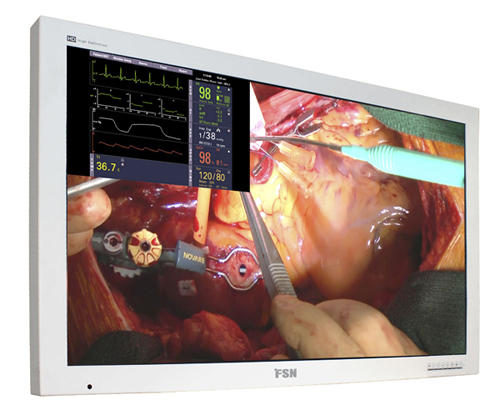

5.       55” Medical Display (FS-L5501D)

·         Display: 55” TFT LCD (IPS)

·         Resolution: 1920 x 1080 (1080 HD) pixel

·         Surface Luminance: 450 cd/m^2

·         Input Signal: 1 x DVI-D 1, 1 x DVI-D2 (optical fiber optional), 1 x VGA (D-sub), 1 x SD/HD/3G-SDI (BNC), 1 x C-VIDEO (BNC), 2 x S-VIDEO (Y/C) (BNC), 1 x Component (RGBS, YpbPr) (5 x BNC)

·         Output Signal: 1 x DVI-D, 1 x SD/HD/3G-SDI (BNC)

·         Dimensions: 50.9”W x 30.59”H x 3.4”D

·         Weight: 81.57 lbs.





FHC has a full line of endoscopy monitors as well as other equipment that assists in ensuring clear, crisp viewing with state-of-the-art display monitors. We also have refurbished options available. View all endoscopy equipment here.
Staff 9/2/2018
